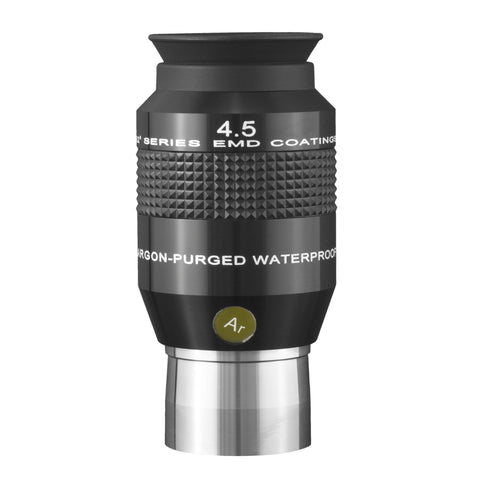

52° 4.5mm Waterproof Eyepiece


  • Sale
  • Regular price $89.99

Free Standard Shipping Available (CONUS Only)

Yes, our inventory is accurate!
We do not offer products for purchase unless they are in stock.


Using advanced computer design, combinations of low dispersion and high refractive index optical glasses, and durable multilayer deposition coatings, Explore Scientific 52° Series Argon-Purged Waterproof eyepieces are optimized to produce high contrast, high resolution, and superior flat field characteristics. The 52° Series eyepieces are par-focal (meaning they focus at near the same point regardless of the focal length you select) and come with a removable and foldable soft silicone rubber eyecup for the comfort of the observer, and as experienced astronomers know, eye comfort is critical when trying to observe at the visual limits of the telescope.

Protection from the Outdoors - By making the eyepiece body Argon-purged, the waterproof eyepiece internal elements will remain as pristine as the day they were assembled.

Argon atoms are larger than that of Nitrogen and therefore they are less likely to leak or diffuse their way through the seals over the life of the eyepiece. The atomic radius of Argon is larger than Nitrogen by 0.13 angstroms and has a larger atomic volume by 11.2 cubic centimeters/molecule. Argon also has superior inertness vs Nitrogen (i.e. forming few or no chemical compounds with other elements) that prevents adverse reactions with eyepiece components and therefore extends the longevity of the internal components, and also prevents chemical reactions with other elemental contaminants that may be introduced through a weakened seal. And, finally because Argon is less conductive of heat than Nitrogen, Argon cools slower thereby buffering the effects of rapid temperature changes of the optics.

The sealed, dry environment is impervious to internal fogging and contaminants such as fungus growing in between the lens elements. Our waterproof eyepiece is easier to clean, and there is no risk of cleaning solution migrating from the top of the lens and seeping around edges to be trapped in between elements. To insure a perfect seal we test every eyepiece in one meter of water for 30 minutes.

High power eyepieces (e.g. 3mm to 10mm) are used not only for obvious observations of planets and double stars, but can be employed for bright, compact deep sky objects. Not only will the scale of an object like a planetary nebula or globular cluster be impressive as it fills the eyepiece FOV, but the background sky will be very dark as the contrast effect increases with added magnification, provided that the atmospheric seeing conditions are favorable enough to reveal a sharp image. The 4.5mm is a popular choice for a wide variety of telescopes, producing some of the highest magnification views that most astronomers will observe at.

Description 4.5mm 52° Series Argon-Purged Waterproof Eyepiece
Item Number EPWP5245-01
Focal Length 4.5mm
Length 83.5mm
Width 43mm
Weight 181.4 grams; 6.4 oz.
Barrel Size/Type 1.25? O.D. / Double Taper
Eye Relief 15mm
Field Stop Diameter: 4.1mm
Coatings: EMD (Enhanced Multi-Layer Deposition) on all lens-to-air surfaces
Lens Elements/ Groups 6 Elements in 3 Groups; Edge Blackened
Filter Thread Fits Standard 1.25-inch Dia. Thread in Filters (1.125-inches x 42 TPI)
Waterproof O-Ring Sealed Argon Gas Purged; Tested Under 1 Meter of Water for 30 Minutes
Eyecup Removable Flip-Down Style Soft Silicone Rubber
Lens Caps Slide-on Top and Bottom
Materials Optical Glass; Aluminum; Steel; Silicone Rubber
Markings Laser Engraved: Focal Length; Series; Serial Number; Brand



SKU: EPWP5245-01
Barcode: 811803030015
