- Double the magnification of each eyepiece you own with the Omni 2X Barlow Lens
- Keep the eye relief of your eyepieces while getting 2X the power
- Slides into 1.25” focusers and diagonals and accepts 1.25” eyepieces
- Fully multi-coated optics with blackened edges for good light transmission and minimal reflections
A Barlow lens is the astronomy accessory that keeps on giving! Insert it between your eyepiece and your telescope to get double the magnification instantly. Let’s say you have two eyepieces in your accessory case, a 10 mm and a 25 mm. Add a Celestron Omni 2X Barlow Lens to the mix, and now you have four magnifications to choose from. Combining this lens with the 25 mm provides double the magnification, or the equivalent of a 12.5 mm eyepiece, while the 10 mm gives you the power of a 5 mm eyepiece.
Eye relief is the distance your eye has to be from the first lens in the eyepiece in order to see the full field of view. When you use a Barlow lens with an eyepiece, you get double the magnification, but the eye relief is not affected. This is a good thing, because normally the shorter the focal length of the eyepiece, the less eye relief you have. In other words, a standard 10mm eyepiece, as a general rule, will have better eye relief than a 5mm eyepiece. Bonus!

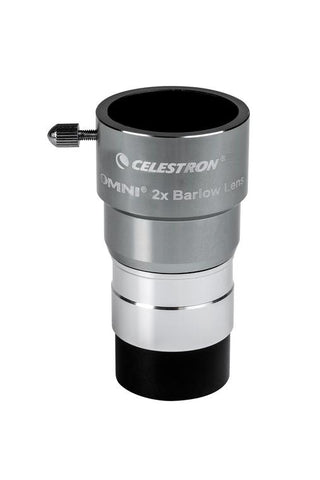

The Celestron Omni 2x Barlow comes in a sleek, silver package. The two-element optics are fully multi-coated, and the edges of the lenses are blackened to cut down on internal reflections. The 1.25” barrel will fit in standard 1.25” focusers and diagonals, and the Barlow will accept 1.25” eyepieces. A metal thumbscrew locks the eyepiece firmly in place.
Twice the magnification options!
A really nice feature of this barlow is that the lens elements are housed in a separate metal cell at the bottom that can be unscrewed from the upper tube. You can then screw the lens elements directly onto the bottom of 1.25" eyepieces to increase the magnification. When screwed into an eyepiece this way, the barlow will yield approximately 1.5x of magnification. So, for example, a 30mm eyepiece can be used with the lens elements screwed on as a 20mm eyepiece, or inside the complete barlow as a 15mm eyepiece. You get more magnification options!
|Size Format||1.25 inch|
|Number of Lens Elements||2|
|Lens Coatings||Fully multicoated|
|Total Length||2.91 inches / 74 mm|
|Length of Nosepiece||1.5 inches / 38 mm|
|Outside Length of Upper Body||1.45 inches / 36.8 mm|
|Insertion Depth||1.38 inches / 35 mm|
|Max Diameter Excluding Thumbscrew||1.95 inches / 49.6 mm|
|Clear Aperture||0.87 inches / 22.1 mm|
|Weight||2.1 oz / 60 g|
|Barlow Lens Cell Removable||Yes|
|Filter Threads at Bottom of Barlow Cell||No|
|Filter Threads Between Barlow Cell and Tube||Yes - 1.25" (M28.5x0.6) Filter Threads|
|Barrel Type||With safety undercut|
|Compatible Agena Bolt Case (with Screw Removed)||42x80|
|Compatible Bolt Case (with Screw Attached)||52x80|
|Number of Thumbscews||1|
